Cleaning Systems

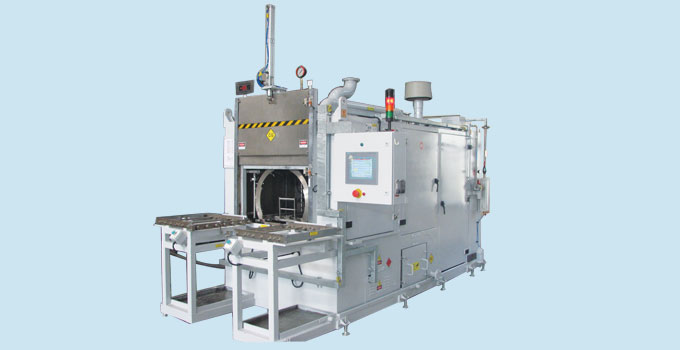

Trolley In-Out Washers
These are cost-effective and versatile washers with a front-load batch-type concept that is suitable for any type of cleaning application

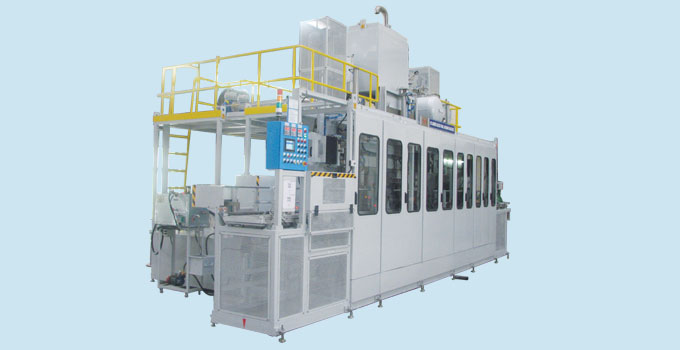

- Single- or twin-chamber configuration to support additional processes such as high-pressure deburr and injection flood washing
- Cleaning of small parts loaded in baskets or individual parts on fixtures

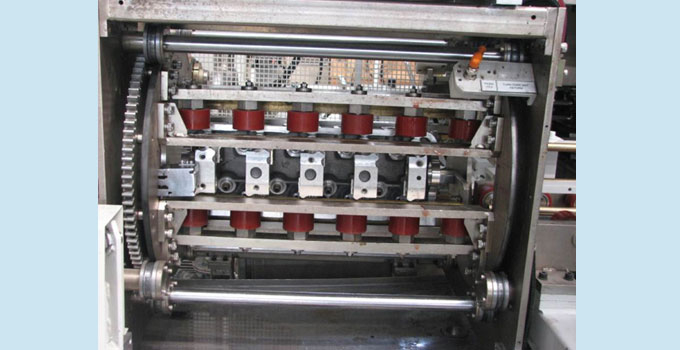

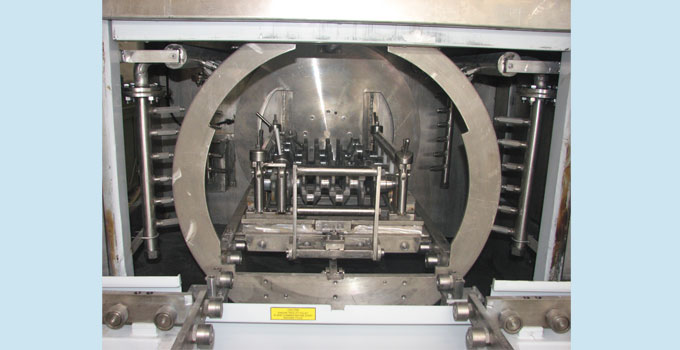

- Part rotation along horizontal axis inside the chamber for enhanced washing/drying or online part rotation on exit conveyor for drying (optional)
- Online vacuum drying on exit conveyor (optional)
- Manual load/unload or semi-/fully-automatic operation
- Washing: high pressure deburr and cleaning; injection flood wash; seal and flush; spray wash (single-stage or multi-stage washing with superclean liquid in the final stage)

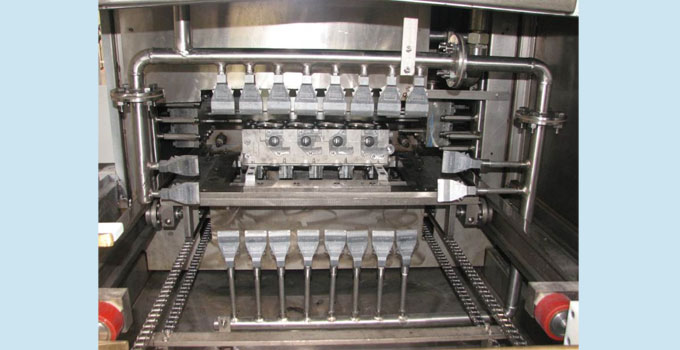

- Drying: vacuum drying; compressed airblow; ambient / hot airblow; component rotation
- Part Types: all types of machined components as well as plastic bins
- Cleaning Application:
- Targeted final cleaning of critical areas such as oil or fuel galleries and water jackets after machining
- Targeted intermediate cleaning to meet input condition requirements of downstream process
- General cleaning prior to assembly
- Output Cleanliness: suitable for meeting general as well as most stringent cleanliness norms
- Throughput: medium, but can be enhanced with multi-chamber configuration (min 60 seconds)
- Versatile and cost-effective system
- Integrates any required process, including high-pressure deburring, injection flood wash and vacuum
- Gantry integration
